Fiber Amplifier Platforms.
CPTEC Amplifier
Monolithic all-fiber amplifiers with no free-space coupling and no optical alignment. Splice-and-go integration with any Polarian-BASE pump unit.
Built on Optical Engines’s patented CPTEC direct-pumped architecture. Space-qualified. Laptop-size footprint. Parallel scalable. See Polarian-BASE pump laser >
TYPICAL PERFORMANCE ENVELOPE
100W to 400W CW | 1030 to 2050 nm | Peak Power up to 1.6 MW | Pulse Energy up to 10 mJ
CPTEC-TGF
Highest CW power in the CPTEC family. 1030 to 1080 nm with greater than 70 percent efficiency.
CPTEC-2UM
Optimized for eye-safe wavelengths and absorption-sensitive materials. 1900 to 2050 nm.
100W CW | 5 mJ | M2 1.2

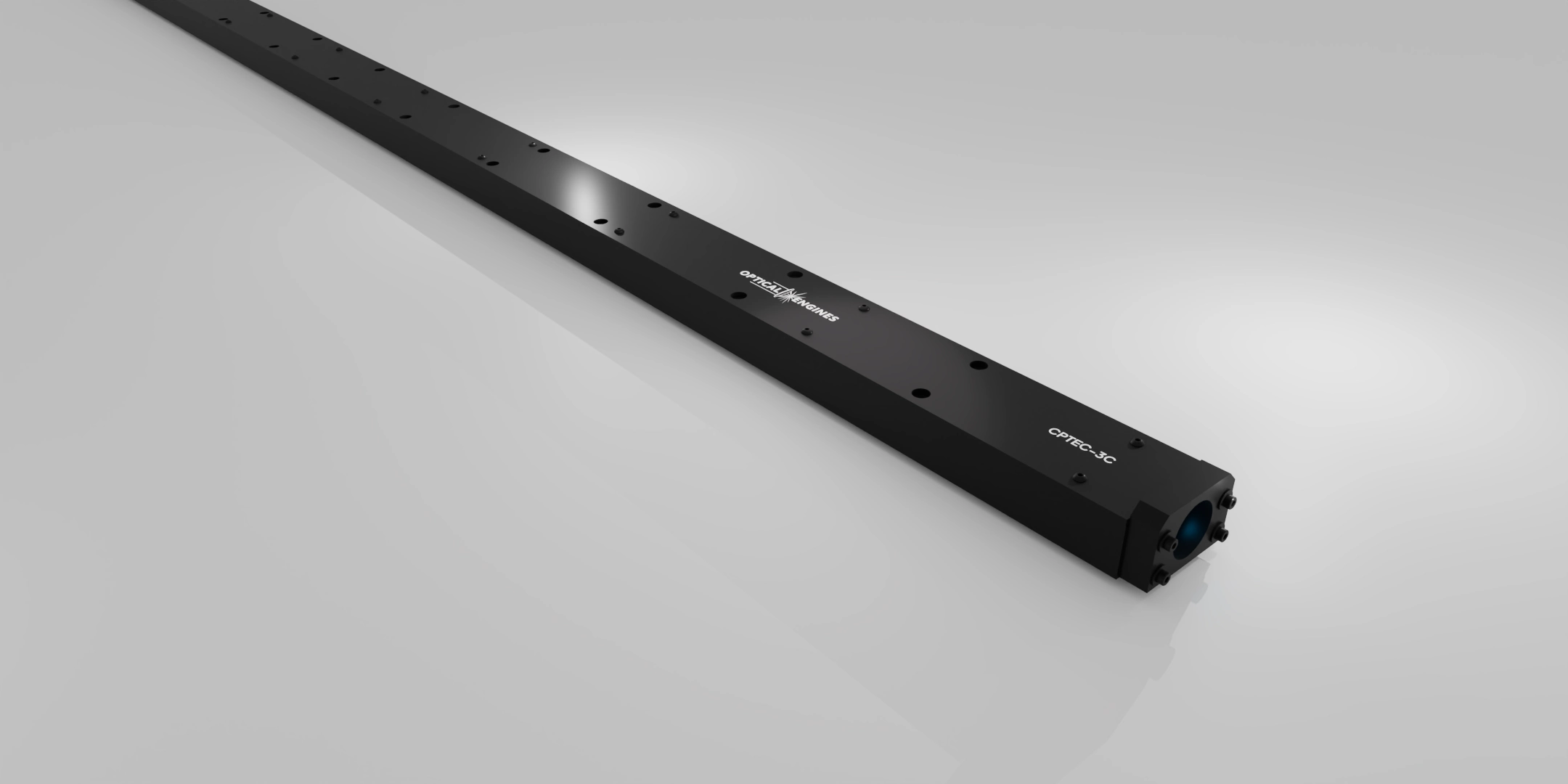

CPTEC-3C
Parallel three-channel architecture for coherent beam combining and high pulse energy applications.
330W CW | 10 mJ | M2 1.2
Configurations
Select the configuration that matches your power, cooling, and integration requirements.
| Parameter | Value |
|---|---|
| Wavelength | 1030 to 1080 nm |
| Max Output Power CW | 400W |
| Peak Power | <1000 kW |
| Pulse Energy | 1 mJ |
| Beam Quality M2 | <1.3 |
| Efficiency | >70% |
| Gain | 30 dB @ 1064 |
| Seed Power | 10 to 1000 mW |
| Fiber | INO FastFBR Yb-MCOF-35/250 |
| Pump Power | <550W |
| Dimensions | 400 x 345 x 11 mm |
| Weight | <2.8 kg |
| Operating Temperature |
10 to 30 C |
| Storage Temperature |
-20 to 60 C |
| Cooling |
Water (cooling plates available) |
Specifications subject to configuration. Contact engineering for wavelength specific or custom builds.
| Parameter | Value |
|---|---|
| Wavelength | 1900 to 2050 nm |
| Max Output Power CW | 400W |
| Peak Power | 100W |
| Pulse Energy | <1000 kW |
| Beam Quality M2 | 5 mJ |
| Efficiency | >35% |
| Gain | Contact engineering for 2 micron gain specifications. |
| Seed Power | 10 to 1000 mW |
| Fiber | NKT DC-250/50-PM-TM |
| Pump Power | <300W |
| Dimensions | 400 x 454 x 14 mm |
| Weight | <2 kg |
| Operating Temperature |
10 to 30 C |
| Storage Temperature |
-20 to 60 C |
| Cooling |
Water (cooling plates available) |
Specifications subject to configuration. Contact engineering for wavelength specific or custom builds.
| Parameter | Value |
|---|---|
| Wavelength | 1030 to 1080 nm |
| Max Output Power CW | 330W |
| Peak Power | <1600 kW |
| Pulse Energy | 10 mJ |
| Beam Quality M2 | <1.2 |
| Efficiency | >35% |
| Gain | 30 dB @ 1064 |
| Seed Power | 10 to 1000 mW |
| Fiber | nLight 3C 85µm Yb700-85/320DC-3C |
| Pump Power | <300W |
| Dimensions | 100 x 100 x 2000 mm |
| Weight | <5 kg |
| Operating Temperature |
10 to 30 C |
| Storage Temperature |
-20 to 60 C |
| Cooling |
Water (built-in) |
Specifications subject to configuration. Contact engineering for wavelength specific or custom builds.
Key Features
All-Fiber Monolithic Core
Reduces alignment, contamination, and field maintenance risk. Strongest architecture-level reliability claim.
Multi-Wavelength Architecture Options
Supports different wavelength, pulse energy, and power requirements. Combines 1 μm and 2 μm capability into one clear flexibility message.
Scalable Power Architecture
Lets customers increase output without redesigning the full system. Positions CPTEC as a platform, not a fixed-output module.
Compact Industrial Platform
Makes deployment easier in constrained industrial and aerospace systems. Combines small footprint, 24/7 operation, and rugged use case fit.

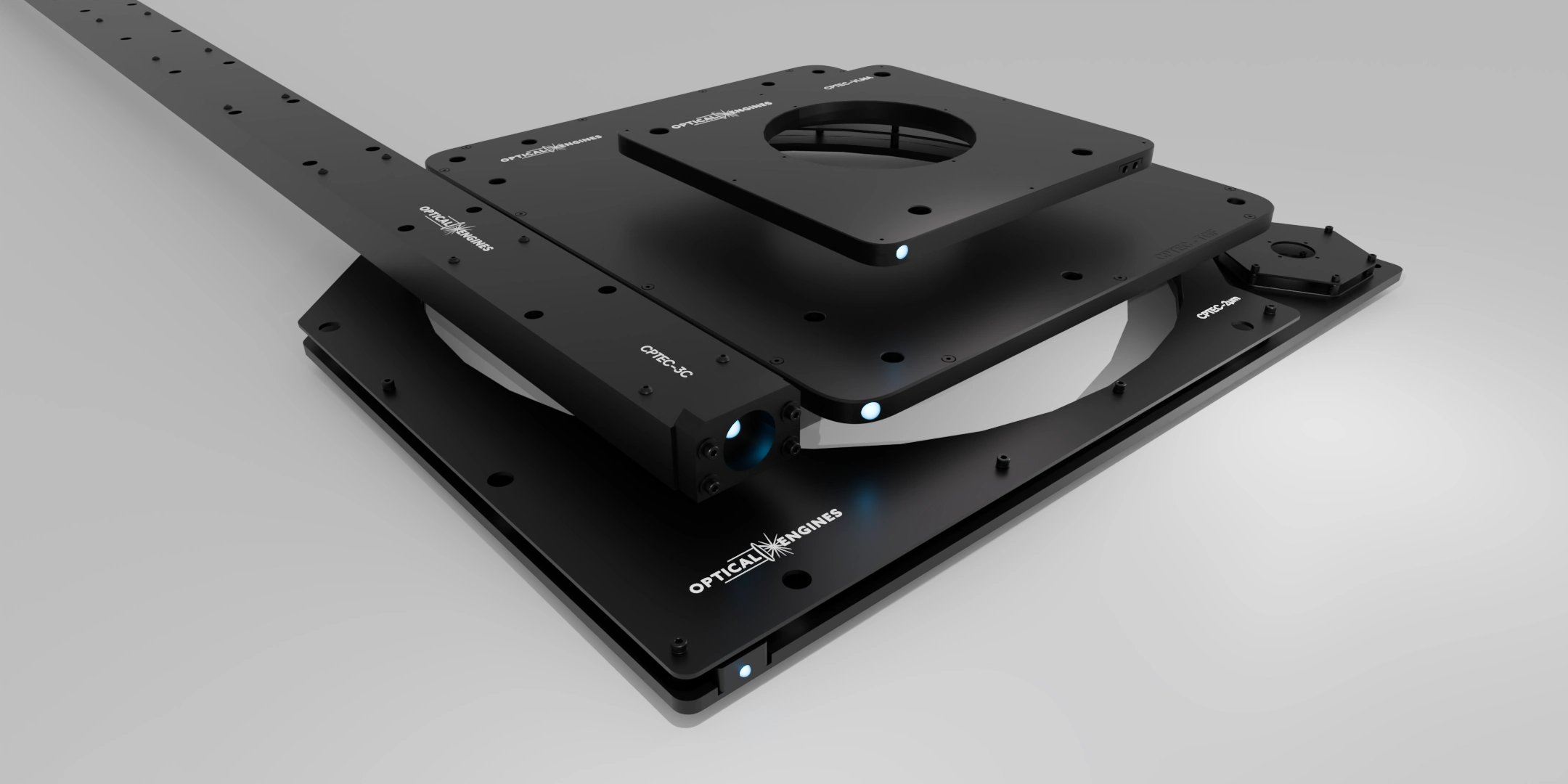

Shared CPTEC Core Architecture
All CPTEC configurations share a common direct-pumped fiber amplifier architecture. Pair with a Polarian-BASE for a complete ultrafast system.
Why This Architecture Matters
Monolithic Fiber Design
All-fiber architecture eliminates free-space optics, mechanical alignment, and contamination risk.
Space-Qualified
Compact laptop-size footprint with ruggedized construction. Designed for aerospace and defense deployment.
Modular and Scalable
Select TGF, 3C, or 2µm configurations based on your power, pulse energy, and wavelength requirements.
Direct Pumped
Patented CPTEC direct-pumped architecture delivers high efficiency and simplified thermal management.
Coming Soon: Turnkey Systems
Fully integrated Polarian-BASE + CPTEC systems with matched performance specifications. One part number. Seed to amplified output.
Complete the System with Polarian-BASE
Every CPTEC Amplifier pairs with the Polarian-BASE pump laser for a complete, sealed ultrafast system. Seed amplification, pump power, thermal management, and controls in one integrated unit.
Downloads
All documentation reflects current production configurations.
| Fiber Amplifier Platforms Product Datasheet
Contact sales@opticalenginesinc.com for additional documentation. |
All documentation reflects current production configurations.
|
Contact sales@opticalenginesinc.com for additional documentation. |
All documentation reflects current production configurations.
|

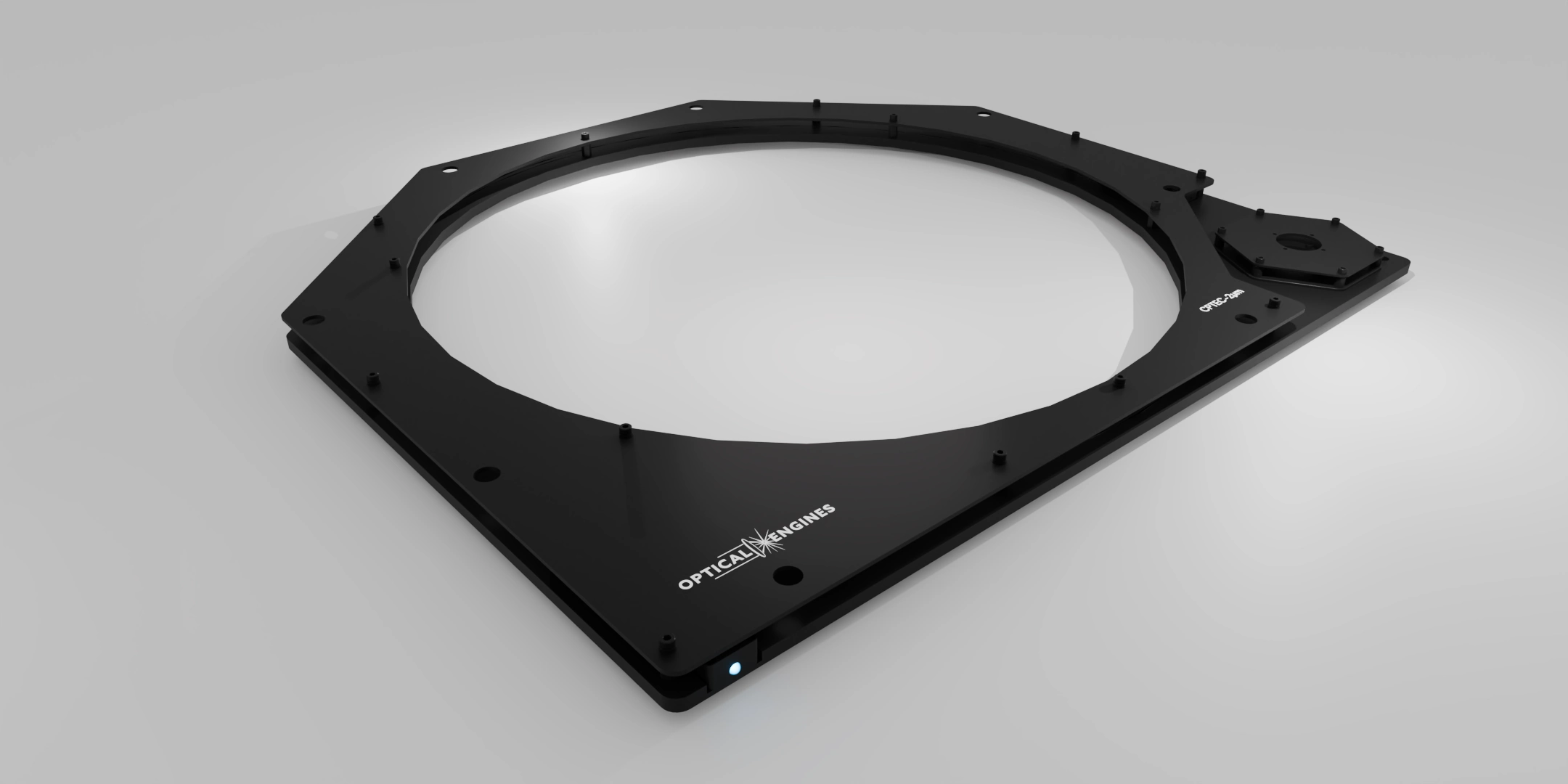

CPTEC-2µm Spiral Plate Assembly Reference Model Contact sales@opticalenginesinc.com for additional documentation. |
All documentation reflects current production configurations.
|
CPTEC-3C Assembly Reference Model Contact sales@opticalenginesinc.com for additional documentation. |
Need a custom configuration?
Configure a CPTEC for your application. Contact engineering with your seed, wavelength, and power requirements.
