Directed Energy Fiber
Laser Systems.
High Power Fiber Laser Systems and Subcomponents
High power fiber laser systems and subcomponents for long range engagement, precision illumination, and defense integration.
Built on Optical Engines’s scalable fiber architecture for ruggedized deployment in aerospace and defense environments. Available as complete systems or individual subcomponents for program-level integration.
TYPICAL PERFORMANCE ENVELOPE
Single mode | Up to 2400 W CW | 1040-1080 nm | >40% EO Efficiency | >15 GHz FWHM Linewidth | M² < 1.3 | <12 kg

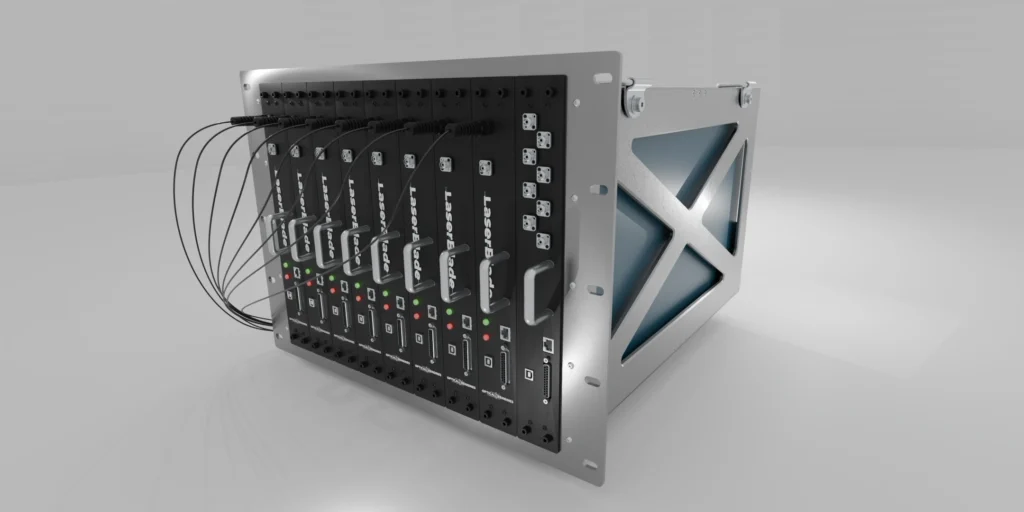

LaserBlade ME-2400-10
24 kW | 10 × 2.4 kW outputs | 40% EO | M² <1.3

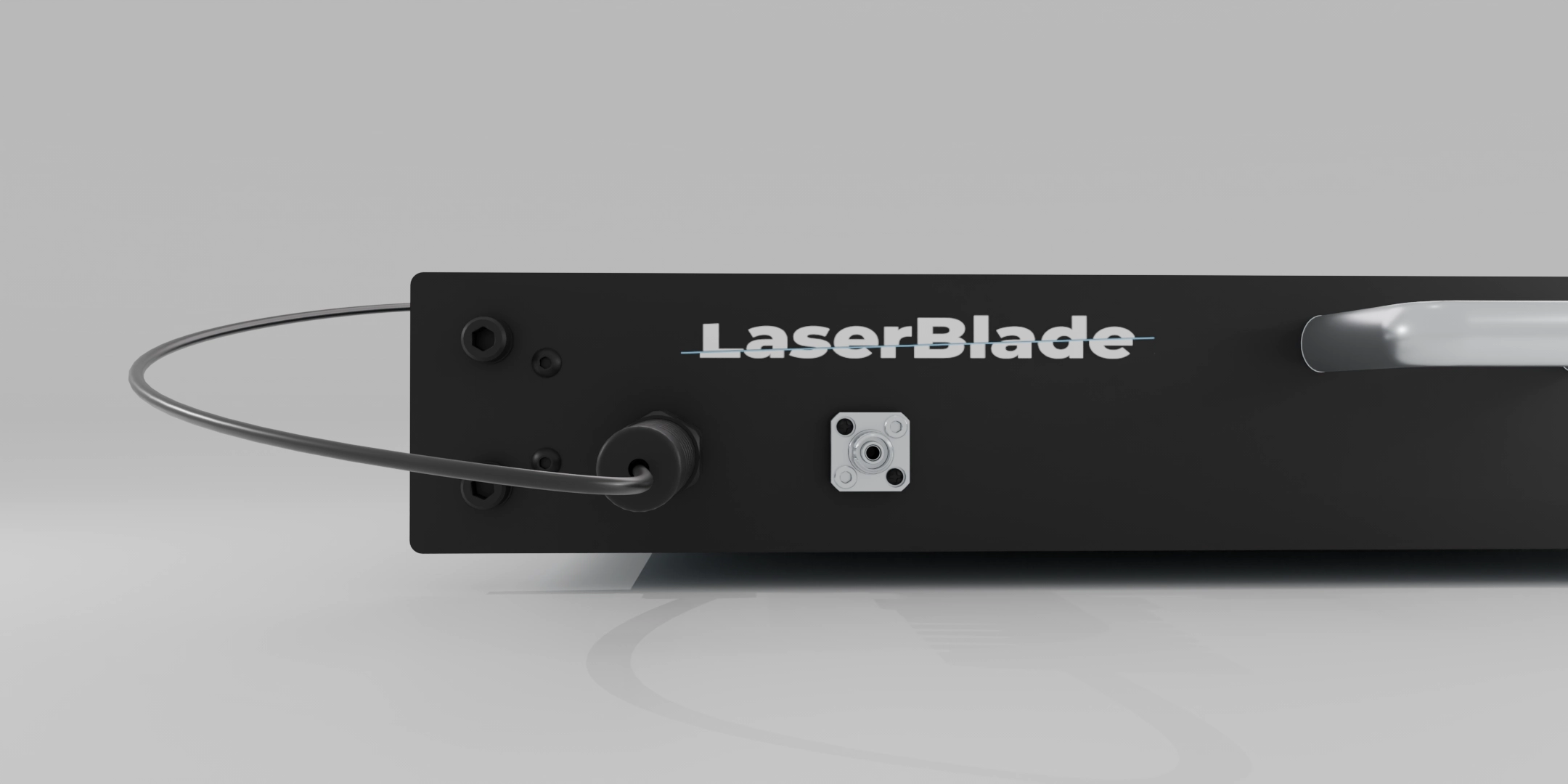

LaserBlade AE-2400
Compact laser module delivering up to 2.4 kW of single mode output with integrated drive and control electronics. High electrical efficiency and low pressure drop cold plate cooling reduce the power, thermal, and integration burden of scaling directed energy systems.
2.4 kW | 40% EO | M² <1.3
Subcomponents and Modules
Individual building blocks for program-level integration. Each subcomponent is field-proven in OEI directed energy systems and available separately for custom architectures.

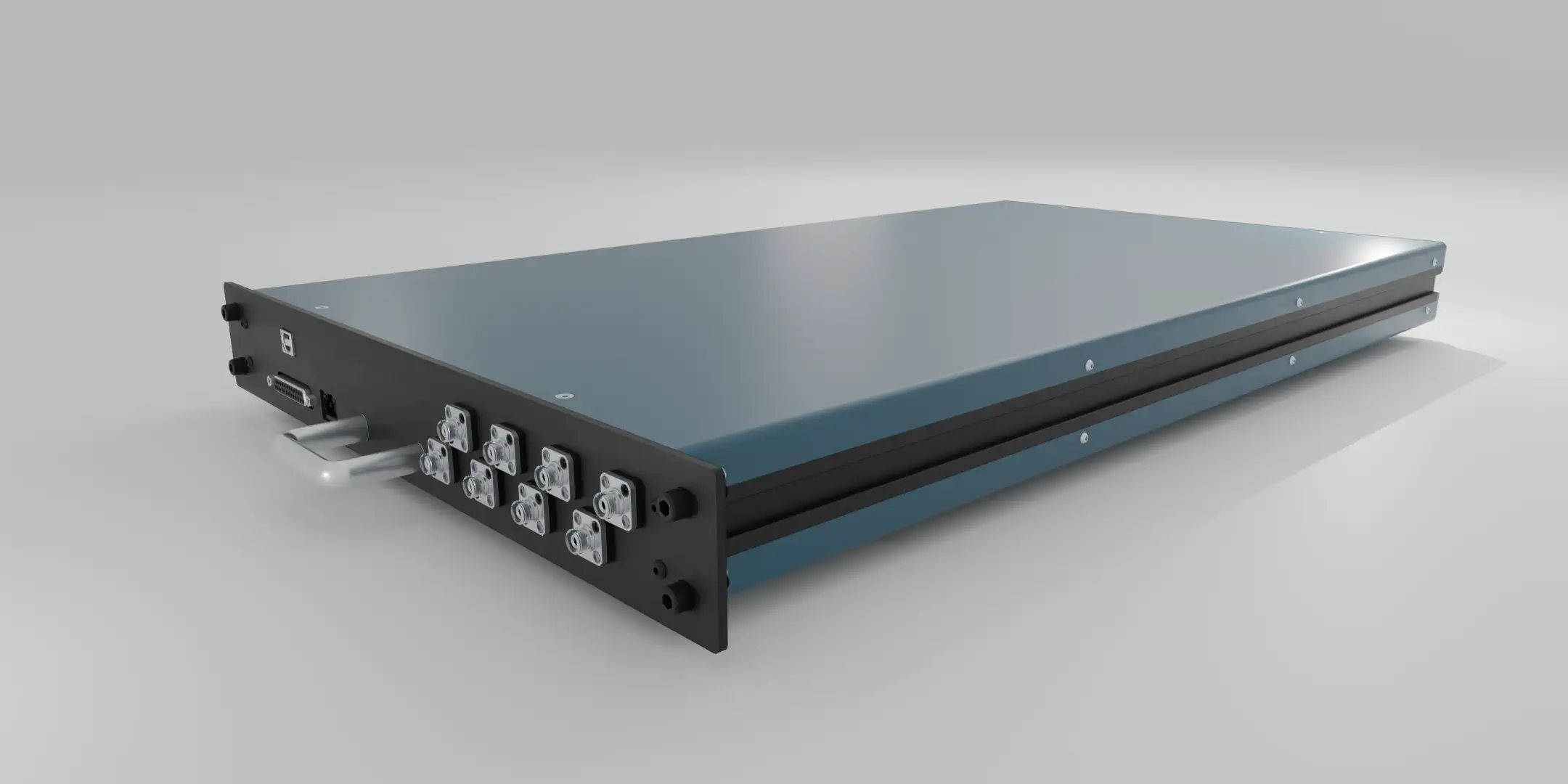

AE-SEED
All-fiber PRBS-broadened seed source delivering up to 20 mW with 15 to 20 GHz linewidth. Designed as a compact source for narrow linewidth amplifier chains and scalable beam combining architectures.
20 mW | 15 to 20 GHz
AE-30
Compact preamplifier delivering up to 30 W of single mode output to seed kilowatt-class amplifier stages. Integrated drive and control electronics, high electrical efficiency, and the LaserBlade cold plate architecture simplify integration into scalable high-power systems.
30 W | 1040-1080 nm |
Single mode

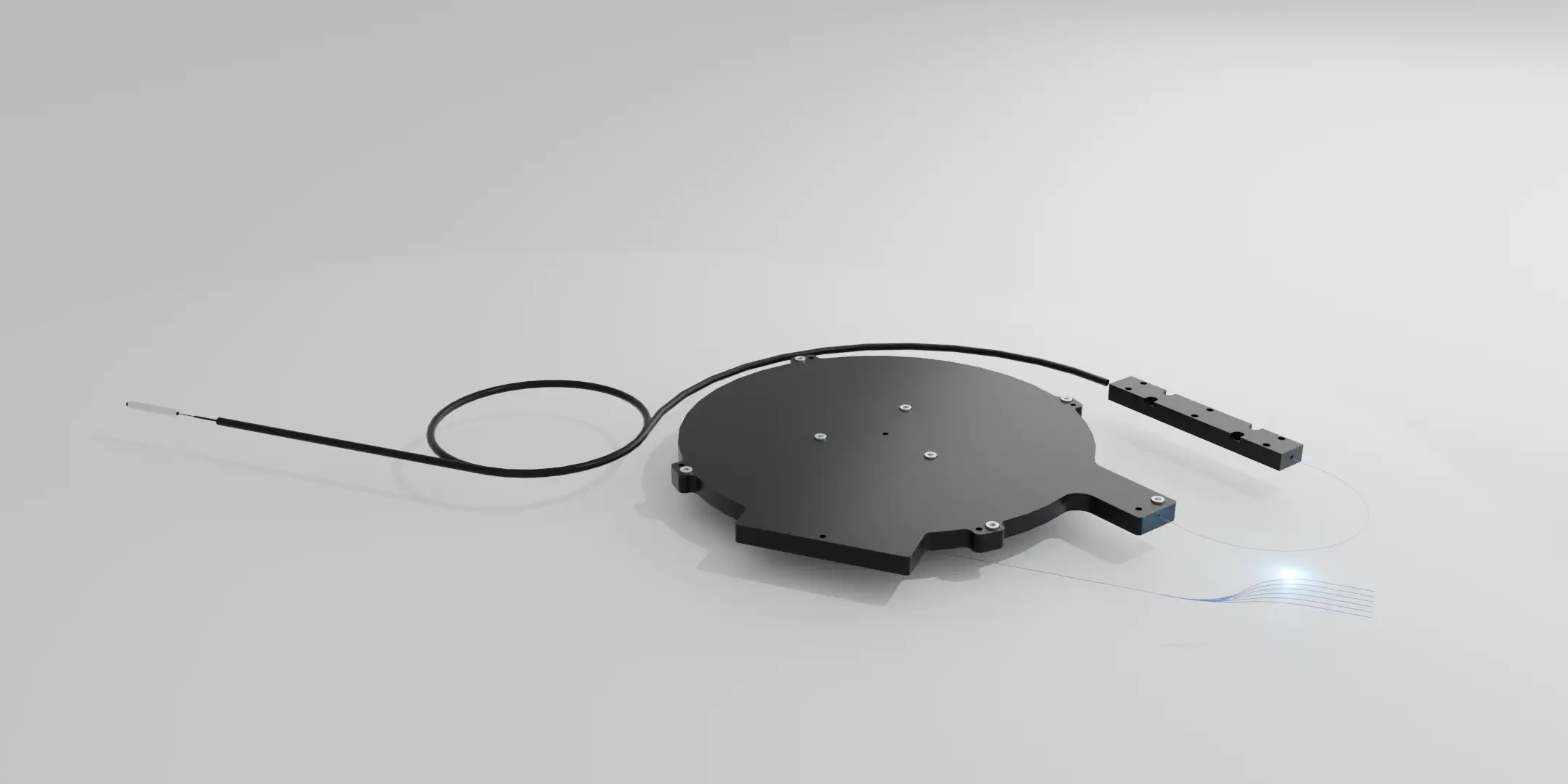

AE-POWER
Compact fiber amplifier harness rated for up to 2.4 kW single mode amplification with 88% optical efficiency. Integrates gain fiber, pump combining, cladding light management, and end capped delivery into one configurable assembly for high power system integration.
2.4 kW | 88% optical efficiency | Single mode

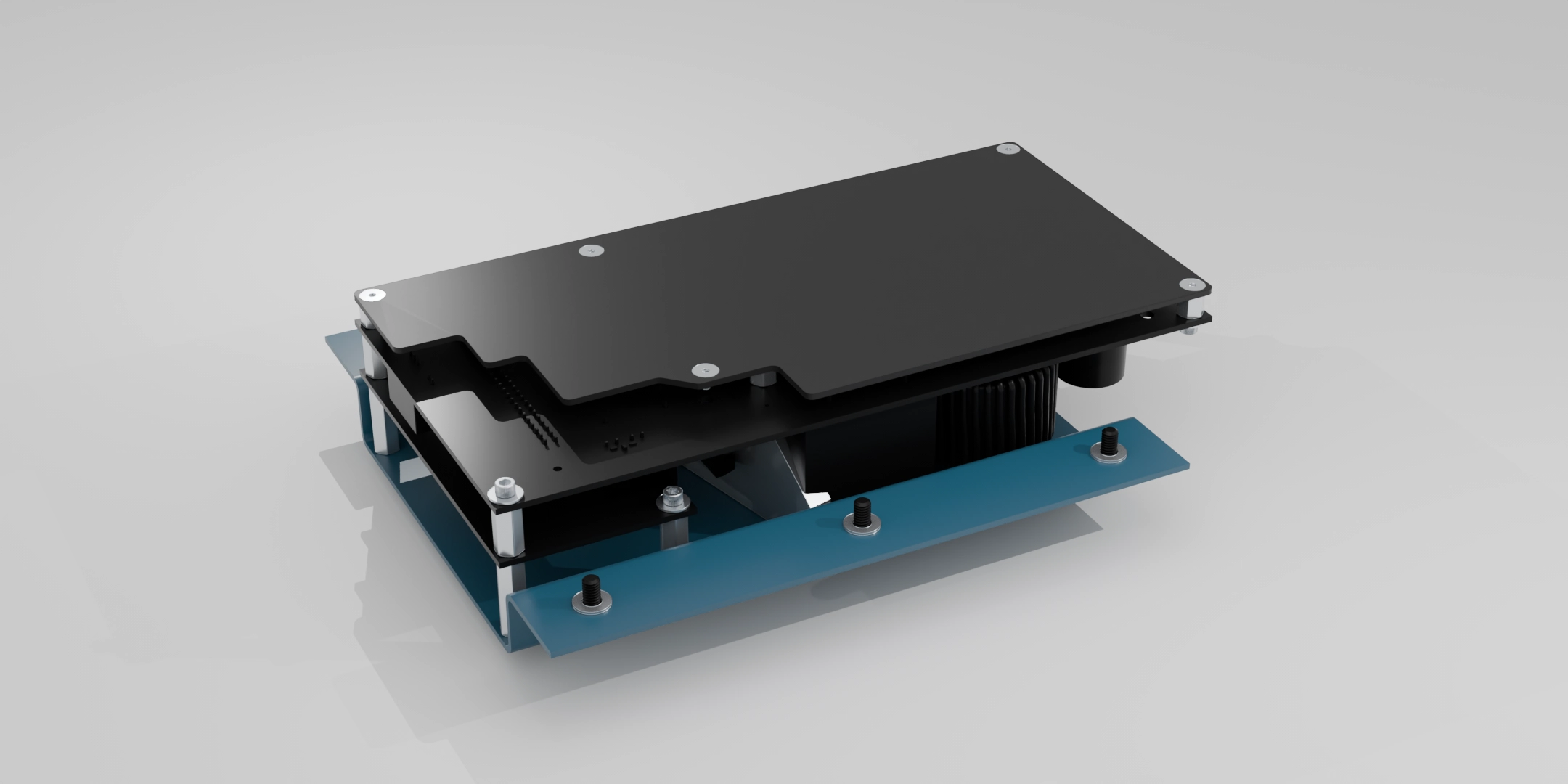

AE-DRIVE
High efficiency switching driver for kilowatt-class laser pump architectures. Greater than 97% conversion efficiency minimizes electrical and thermal overhead, while integrated thermal sensing and CAN control simplify monitoring, interlocking, and system integration.
>97% efficiency | 50 to 400 VDC input | 30 to 300 VDC output
Full System Architecture
The Polarian-BASE integrates seed handling, pump laser, and thermal management. Pair with a CPTEC Amplifier for a complete ultrafast system.
Why This Architecture Matters
All-fiber Construction
No free space, improves reliability, high tolerance to shock/vibration, less susceptible to contamination.
Scalable
Rack systems can be built to incorporate as many modules as needed to achieve power target.
Wide Input Voltage Range
Designed to be powered directly from battery, 250-400 VDC, no additional electronics needed.
Customizable Output Fiber Delivery
Small form factor endcap terminations to enable small-pitch combiner arrays.
Configurations
Select the configuration that matches your power, cooling, and integration requirements.
| Parameter | Value |
|---|---|
| Wavelength, Signal | 1040 to 1080 nm |
| Linewidth (FWHM) | ≥15 GHz |
| Input Power, Seed | ≥10 mW per amp module |
| Output Power, CW | 24 kW |
| Beam Quality | ≤1.3 M² |
| Fiber Length | ≤3 m |
| Fiber Connector | Bare, Endcap, Collimator |
| Dimensions (W x H x L) | 700 x 424 x 612 mm |
| Weight | 150 kg |
| Input Voltage | 250 to 400 VDC |
| EO Efficiency | ≥40% |
| Communication | Ethernet, Analog |
| Operating Temperature | 10 to 40 C |
| Storage Temperature | -20 to 60 C |
| Coolant Temperature | 15 to 35 C |
| Flow Rate | 10 LPM per amp module |
Specifications subject to configuration. Contact engineering for wavelength specific or custom builds.
| Parameter | Value |
|---|---|
| Wavelength, Signal | 1040 to 1080 nm |
| Linewidth (FWHM) | ≥15 GHz |
| Input Power, Seed | ≥10 mW |
| Output Power, CW | ≤2400 W |
| Beam Quality | ≤1.3 M² |
| Fiber Length | ≤3 m |
| Fiber Connector | Bare, Endcap, Collimator |
| Dimensions (W x H x L) | 341 x 51 x 608 mm |
| Weight | ≤12 kg |
| Input Voltage | 250 to 400 VDC |
| EO Efficiency | ≥40% |
| Communication | Ethernet, Analog |
| Operating Temperature | 10 to 40 C |
| Storage Temperature | -20 to 60 C |
| Coolant Temperature | 15 to 35 C |
| Flow Rate | 10 LPM |
Specifications subject to configuration. Contact engineering for wavelength specific or custom builds.
| Parameter | Value |
|---|---|
| Wavelength, Signal | 1040 to 1080 nm |
| Linewidth (FWHM) | 15-30 GHz |
| Output Power, CW | 10-20 mW |
| Beam Quality | ≤1.1 M² |
| Fiber Connector | FC/APC |
| Dimensions (W x H x L) | 341 x 51 x 608 mm |
| Weight | ≤8 kg |
| Input Voltage | 24 VDC |
| EO Efficiency | ≥40% |
| Communication | Ethernet USB Analog |
| Operating Temperature | 10 to 40 C |
| Storage Temperature | -20 to 60 C |
| Coolant Temperature | 15 to 35 C |
| Flow Rate | 2 LPM |
Specifications subject to configuration. Contact engineering for wavelength specific or custom builds.
| Parameter | Value |
|---|---|
| Wavelength, Signal | 1040 to 1080 nm |
| Linewidth (FWHM) | ≥15 GHz |
| Input Power, Seed | ≥10 mW |
| Output Power, CW | 30 W |
| Beam Quality | ≤1.1 M² |
| Fiber Length | ≤3 m |
| Fiber Connector | Bare Fiber |
| Dimensions (W x H x L) | 341 x 51 x 608 mm |
| Weight | ≤12 kg |
| Input Voltage | 250 to 400 VDC |
| EO Efficiency | ≥40% |
| Communication | Ethernet, Analog |
| Operating Temperature | 10 to 40 C |
| Storage Temperature | -20 to 60 C |
| Coolant Temperature | 15 to 35 C |
| Flow Rate | 10 LPM |
Specifications subject to configuration. Contact engineering for wavelength specific or custom builds.
| Parameter | Value |
|---|---|
| Wavelength, Signal | 1040 to 1080 nm |
| Linewidth (FWHM) | ≥15 GHz |
| Input Power, Signal | ≥20 W |
| Input Power, Pump | ≤3500 W |
| Output Power, CW | ≤3000 W |
| OO Efficiency | ≥88% |
| Beam Quality | ≤1.1 M² |
| # of Pump Inputs | 6 |
| Input Fiber Type, Signal | 10/125-DC |
| Input Fiber Type, Pump | 200/220-DC |
| Output Fiber Type | 20/400-DC |
| Output Fiber Length | ≤3 m |
| Output Fiber Connector | Bare, Endcap, Collimator |
| Dimensions (W x H x L) | |
| Weight | 1 kg |
| Operating Temperature | 10 to 40 C |
| Storage Temperature | -20 to 60 C |
Specifications subject to configuration. Contact engineering for wavelength specific or custom builds.
| Parameter | Value |
|---|---|
| Input Voltage, Aux | 12 VDC |
| Input Voltage, Main | 50-400 VDC |
| Input Current, Main | ≤27 A |
| Output Voltage | 30-300* VDC |
| Output Current | ≤30 A |
| Output Ripple Current | ≤200 mA |
| Rise Time | ≤5 msec |
| Fall Time | ≤10 usec |
| Electrical Efficiency | 97% |
| Dimensions (W x H x L) | 95 x 46 x 190 |
| Weight | 880 g |
| Operating Temperature | -20 to 70 C |
| Storage Temperature | -40 to 120 C |
Specifications subject to configuration. Contact engineering for wavelength specific or custom builds.
* Input voltage must be higher than output.
Key Features
Narrow Linewidth
Suitable for multi-channel spectral beam combination.
High Efficiency
Over 40% electrical-to-optical efficiency with counter-pumped architecture.
Integrated Control/Drive Electronics
High efficiency drivers, plug and play, just add cooling fluid and battery supply.
Low SWAP
5.0 kg/kW and 4.4 L/kW, low weight and small volume intended for integration into mobile platforms.
Scalable Defense Architecture
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Sed do eiusmod tempor incididunt ut labore et dolore magna aliqua. Ut enim ad minim veniam.
Primary Mission Profiles
Downloads
All documentation reflects current production configurations.
| Contact sales@opticalenginesinc.com for additional documentation. |
All documentation reflects current production configurations.
|
LaserBlade ME-2400-10 Datasheet Contact sales@opticalenginesinc.com for additional documentation. |
All documentation reflects current production configurations.
|
Contact sales@opticalenginesinc.com for additional documentation. |
All documentation reflects current production configurations.
|
Contact sales@opticalenginesinc.com for additional documentation. |
All documentation reflects current production configurations.
|
Contact sales@opticalenginesinc.com for additional documentation. |
All documentation reflects current production configurations.
|
Contact sales@opticalenginesinc.com for additional documentation. |
All documentation reflects current production configurations.
|
Contact sales@opticalenginesinc.com for additional documentation. |
Need a custom configuration?
Configure a LaserBlade for your application. Contact engineering with your seed, wavelength, and power requirements.
