Ultrafast Fiber
Lasers.

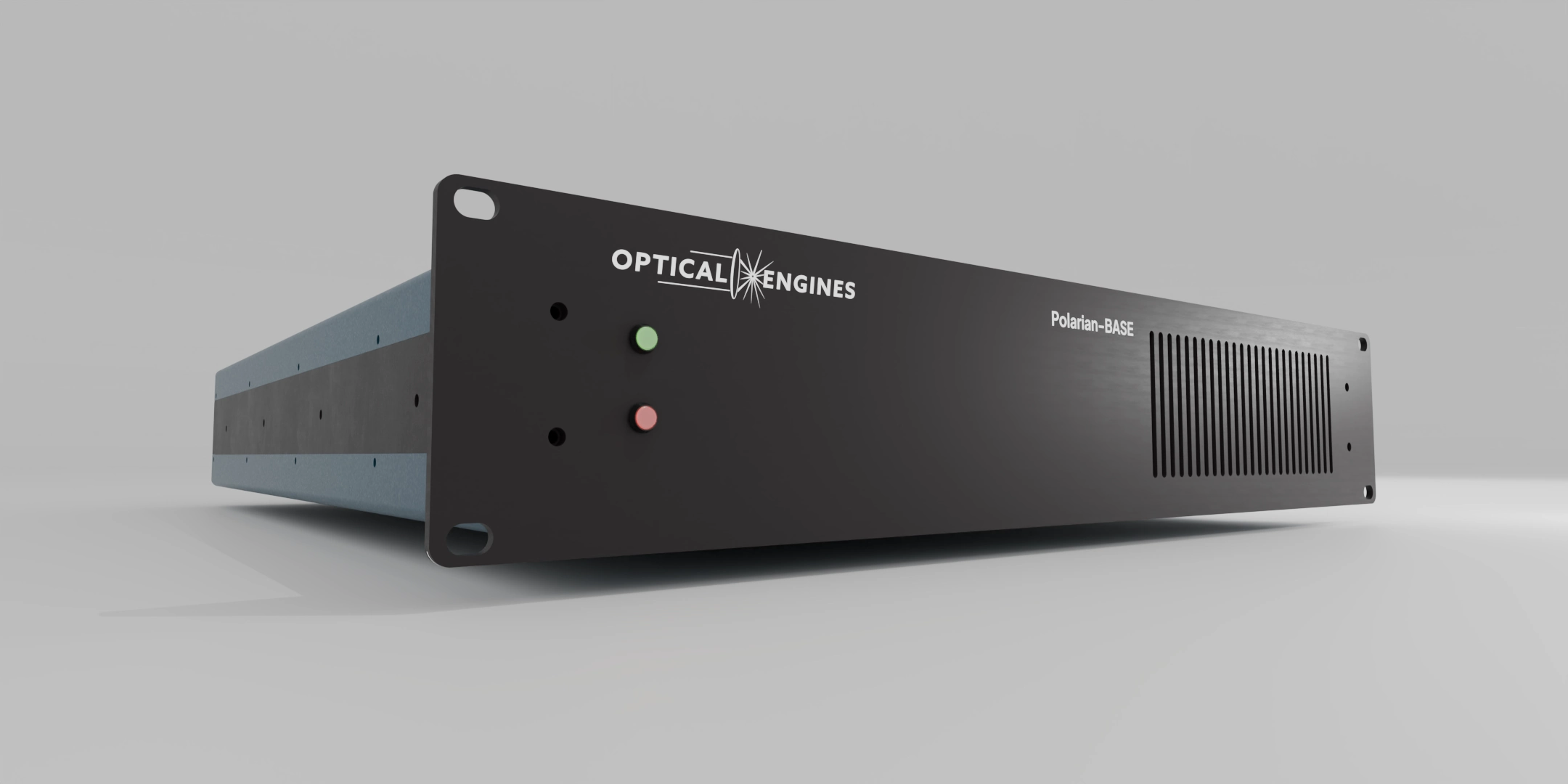

Polarian-BASE
The integrated pump and pre-amplifier at the foundation of every Optical Engines ultrafast system. Seed amplification, pump laser, thermal management, and controls in one sealed unit.
From FC/APC seed input to high-power optical output. Pair with a CPTEC Amplifier for a complete, alignment-free ultrafast laser system. See CPTEC Amplifiers >
TYPICAL PERFORMANCE ENVELOPE
500W CW | 793nm through 980nm pump | 1µm and 2µm pre-amps | Water Cooled | External Seed | <25 kg typ.

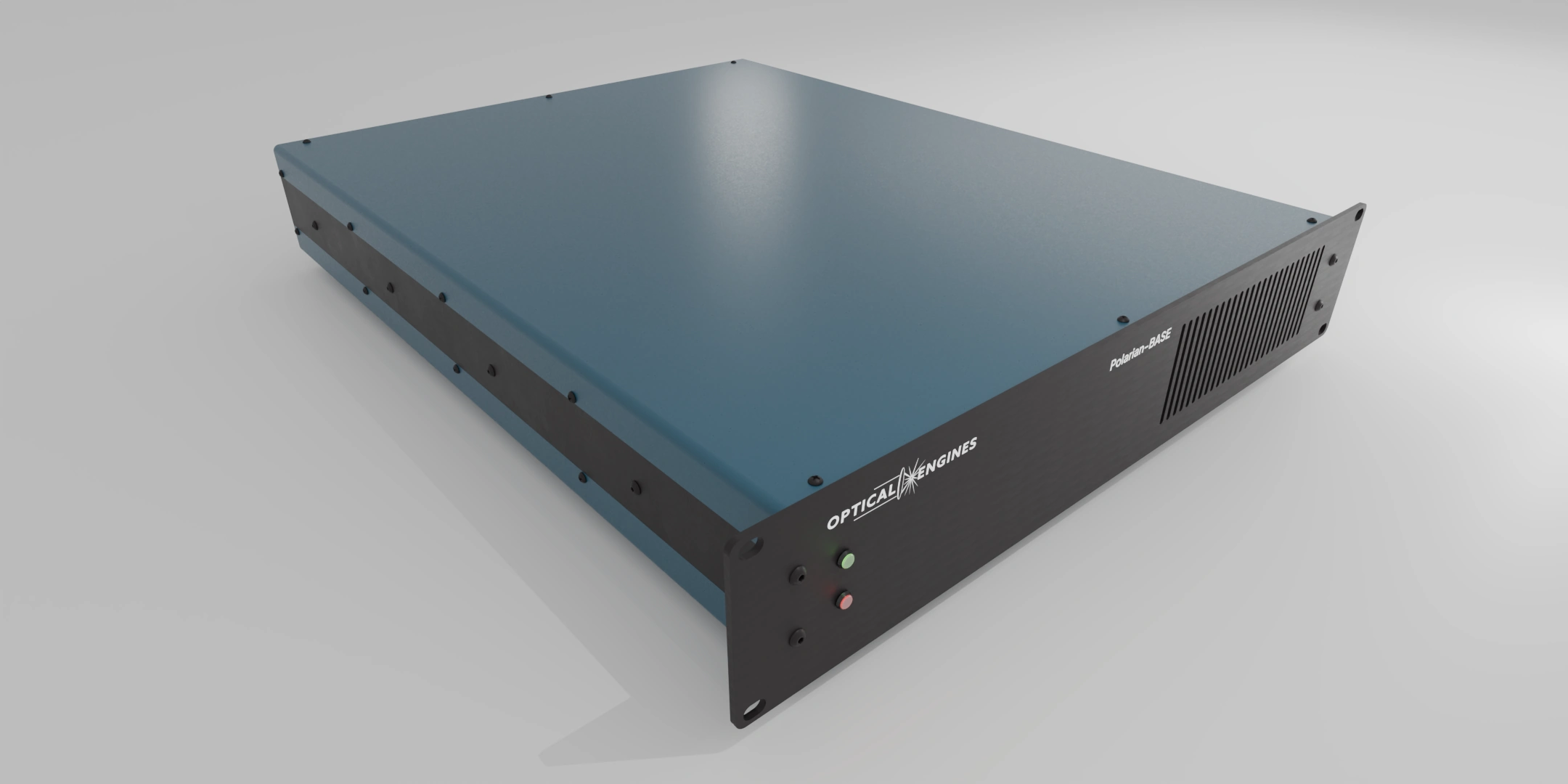

Polarian-BASE (Water-Cooled)
High power pump and pre-amplifier for industrial ultrafast systems. Drives all CPTEC configurations at full rated power.
500W CW | 793-980nm pump | 1µm/2µm pre-amps | <25 kg typ.
Configurations
Select the configuration that matches your power, cooling, and integration requirements.
| Parameter | Value |
|---|---|
| Pump Wavelength | 793 to 980 nm |
| Pre-Amp Output | 1µm and 2µm |
| CW Pump Power | Up to 500W |
| Beam Pointing Stability | <10 urad |
| Seed Connector | FC/APC |
| Seed Input Power | 10 to 100 mW |
| Supply Voltage | 100 to 240 VAC |
| Power Consumption | <900W |
| Operating Temperature | 10 to 40 C |
| Storage Temperature | -20 to 60 C |
| Weight | <25 kg |
| Dimensions | 590 x 425 x 100 mm (L x W x H) |
Specifications subject to configuration. Contact engineering for wavelength specific or custom builds.
Key Features
Dual Wavelength Pre-amplifier Platform
Reduces platform complexity for 1 μm and 2 μm amplifier work. Positions Polarian as flexible across key amplifier configurations.
Beam Stability Through Active Thermal Management
Reduces performance drift under thermal load. “Below 10 microradians” is the strongest quantified proof point.
500 W Continuous Wave Pump Power
Gives customers power headroom for demanding amplifier setups. High output capability is easier to understand and compare.
Flexible External Seed Input With Built-in Protection
Makes integration easier and reduces operating risk. Combines compatibility, seed dropout monitoring, and interlocks into one customer-relevant benefit.
Full System Architecture
The Polarian-BASE integrates seed handling, pump laser, and thermal management. Pair with a CPTEC Amplifier for a complete ultrafast system.
Why This Architecture Matters
Dual Wavelength Pre-Amps: 1µm and 2µm
793nm through 980nm pump drives both 1 micron and 2 micron pre-amplifier configurations.
Ruggedized
Universal 100 to 240 VAC input. 10 to 40 C operating range. Built for 24/7 industrial environments.
Thermally Stable
Active thermal management holds beam pointing below 10 microradians across the full operating envelope.
Scalable
Pair with any CPTEC model: TGF, 3C, or 2 micron. Same Polarian-BASE, different output configurations.
Coming Soon: Integrated Seeds
Fully integrated nano and pico seed units are in development. One unit. One vendor. Seed to amplified output.
Compare Configurations
The Polarian-BASE drives any CPTEC Amplifier to deliver a fully monolithic ultrafast system. Up to 500W pump power, pulse energies from 0.5 to 10 mJ, and peak power approaching 1 MW.
| Parameter | Value | Wavelength | Pulse Energy | M² |
|---|---|---|---|---|
| CPTEC-TGF | 400W | 1030-1080 nm | 1 mJ | <1.3 |
| CPTEC-3C | 330W | 1030-1080 nm | 10 mJ | 1.2 |
| CPTEC-2UM | 100W | 1900-2050 nm | 5 mJ | 1.2 |
OEM Integration Overview
The Polarian-BASE is designed for direct OEM integration with standardized interfaces and industrial-grade construction.
- FC/APC seed input, pre-amplified signal output, pump output on rear panel
- Water and electrical connections on rear panel
- 590 x 425 mm standardized mounting footprint
- CE, UL certified
- Built-in GUI for real-time monitoring and control
Downloads
All documentation reflects current production configurations.
|
Contact sales@opticalenginesinc.com for additional documentation. |
All documentation reflects current production configurations.
|
Polarian Base Assembly Reference Contact sales@opticalenginesinc.com for additional documentation. |
Need a custom configuration?
Configure a Polarian-BASE for your application. Contact engineering with your seed, wavelength, and power requirements.
